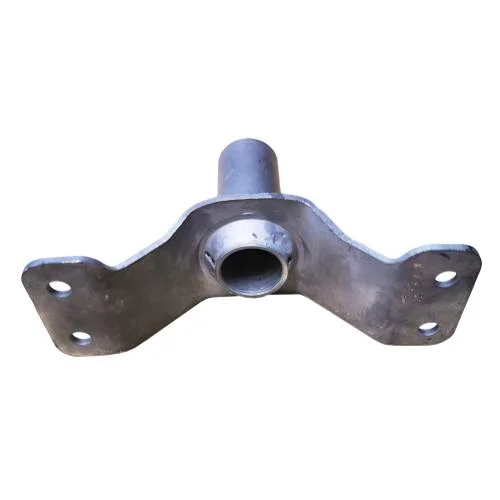

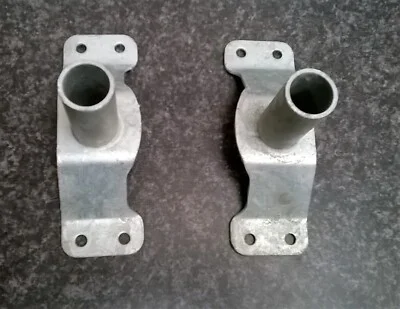

Front Hinge Ifor Williams - 506/511, Assembly

This is a genuine Ifor Williams front hinge assembly for HB horsebox models 506 and 511. It's an authentic OEM replacement part that connects and supports the front opening panels or doors, allowing them to swing open and closed smoothly. When the original hinge shows wear or damage, this factory component restores proper operation. These hinges ensure smooth operation and reliable movement of the doors, which are crucial for easy access and safety during loading and unloading of horses.

Why you'll want it

• Genuine Ifor Williams OEM part — exact fit and specification
• Designed specifically for HB 506 and HB 511 horseboxes
• Restores original function to front opening panels
• Direct replacement for worn or damaged hinge assemblies
• Maintains structural integrity and safe operation

Specifications

506/511 hinge assemblyoverall hight 95mm, plate width 47mm, plate depth 50mm, centre diameter 23mm, bolt holes 7mm each506/511 hinge assemblywhat weight is about 0.37kg506/511 hinge assemblythe material that it is made out of is galvanised steel506/511 hinge assemblythe load rating is 2,600kg to 2,700kg506/511 hinge assemblythe thread size is 1.25mm

Fits

• Ifor William HB506
• Ifor William HB511
• Ifor William HB403

What's in the box

• Front hinge assembly

Check your horsebox model number (506 or 511) before ordering to confirm compatibility.
