Car Trailer Kit - 10" Wheels

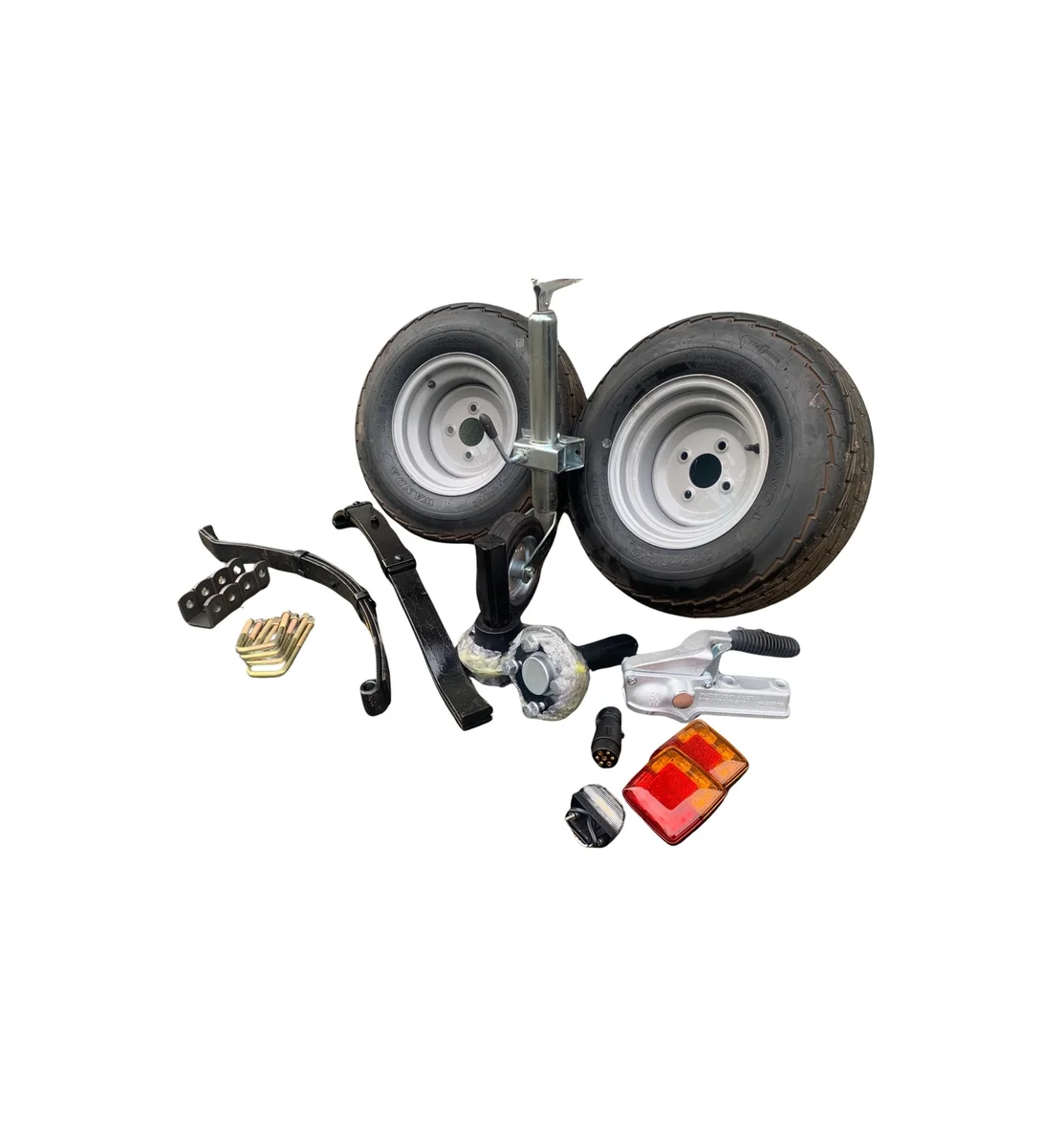

This is a complete car trailer kit built around 10-inch wheels with a 100mm PCD stud pattern. It brings together all the core running gear, suspension, electrics and coupling you need to get a trailer chassis rolling – wheels and tyres, stub axles, leaf springs with hangers, lighting, a 1200kg soft-grip Bradley hitch and a jockey wheel with clamp.

Why you'll want it

• Everything in one kit – wheels, axle stubs, suspension, hitch, lights and cable
• 10-inch 20.5×8.0 four-ply tyres on 100 PCD wheels
• Three-leaf springs with hangers and U-bolts for suspension
• LED tail lights (stop, tail, indicator) plus number-plate light and seven-pin plug with five metres of seven-core cable
• 1200 kg soft-grip Bradley hitch and jockey wheel with clamp included

Specifications

Wheels20.5x8.0 (4-ply) 10" wheels with a 100mm Pitch Circle Diameter (PCD). 2Stub Axles4 stud stubs (100PCD). 2Hitch1200kg soft-grip Bradley hitch. 1Suspension Springs3 leaf springs. 2Spring Hangersspring hangers. 4U-Bolts12mm U-bolts. 4Mounting Plates5-hole plates. 2Main LightingLED tail lights providing stop, tail, and indicator functions. 2Registration Lightnumber plate light 1Wiring7-pin plug 1Supportjockey wheel including a mounting clamp 1

Fits

• Light Utility Trailers Universal

What's in the box

• 2× 20.5×8.0 four-ply 10-inch wheels (100 PCD)

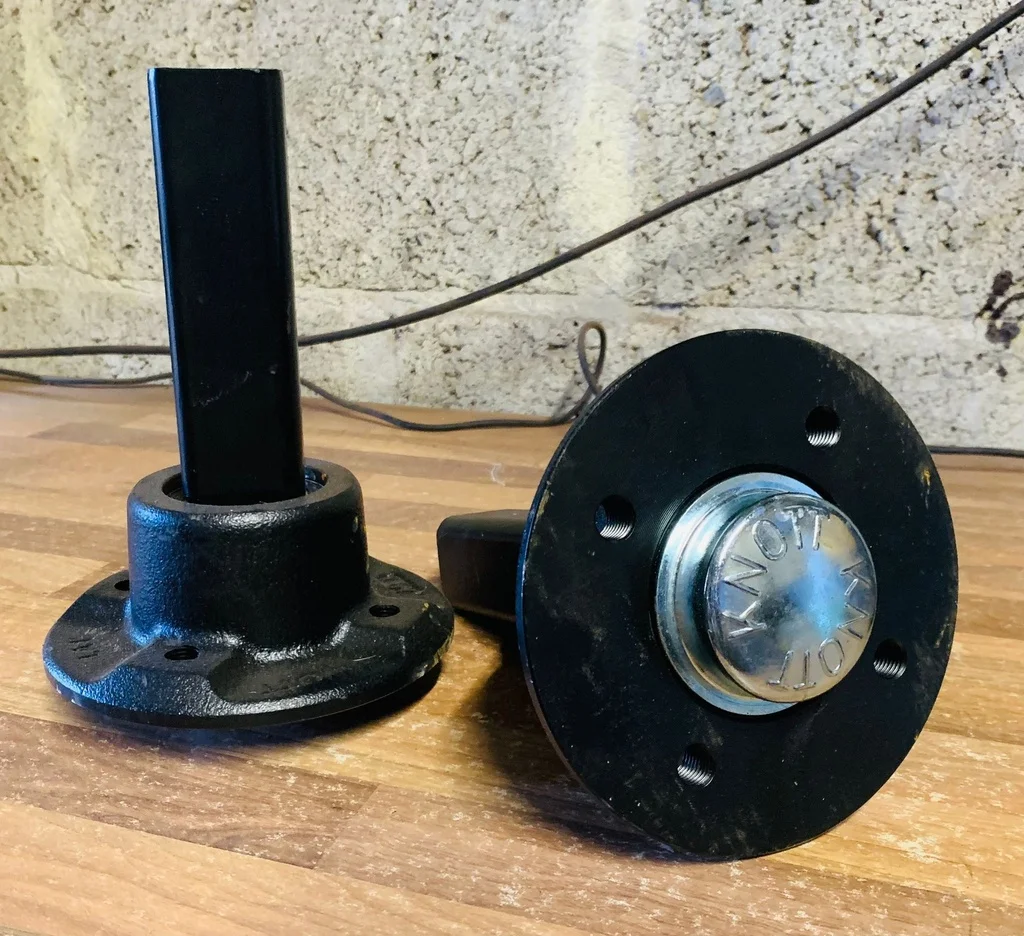

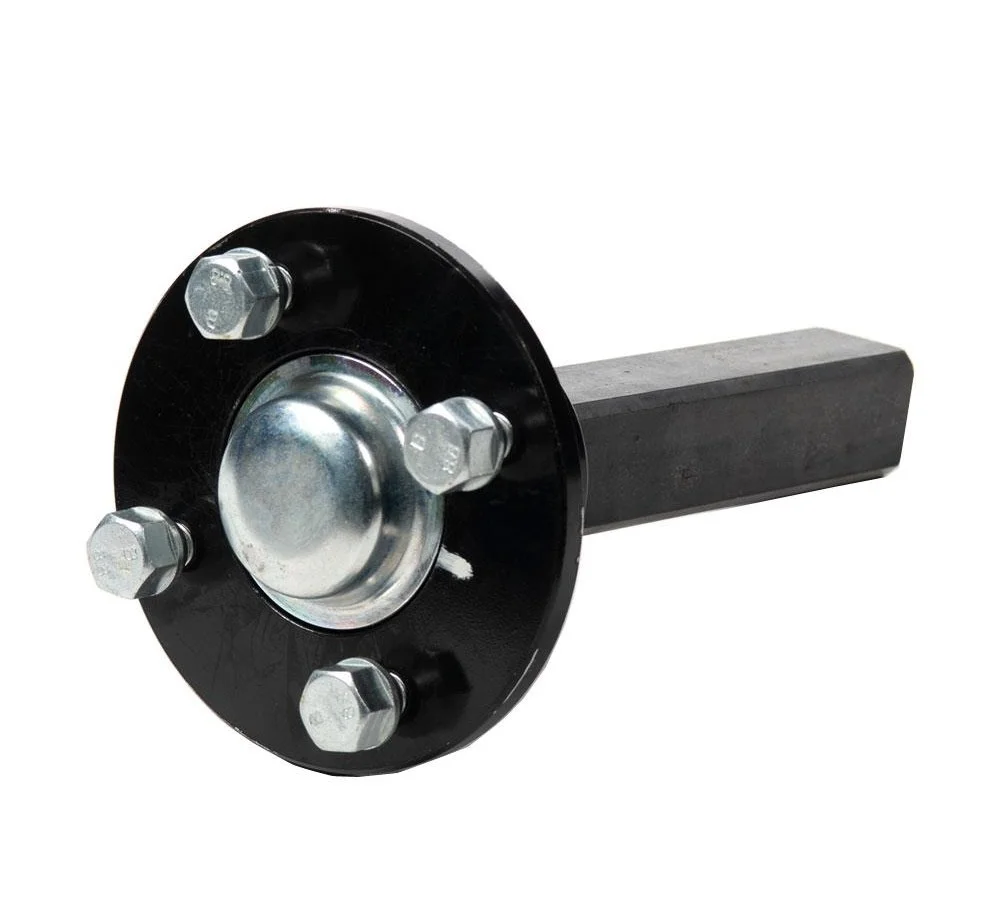

• 2× four-stud stub axles (100 PCD)
• 4× spring hangers
• 2× three-leaf springs
• 2× five-hole mounting plates
• 4× 12 mm U-bolts
• 2× LED tail lights (stop/tail/indicator)
• 1× number-plate light
• 1× seven-pin plug with 5 m of seven-core cable
• 1× 1200 kg soft-grip Bradley hitch
• 1× jockey wheel with clamp

Check that the 100 mm PCD stub pattern and 1200 kg hitch capacity suit your chassis design and intended load.
