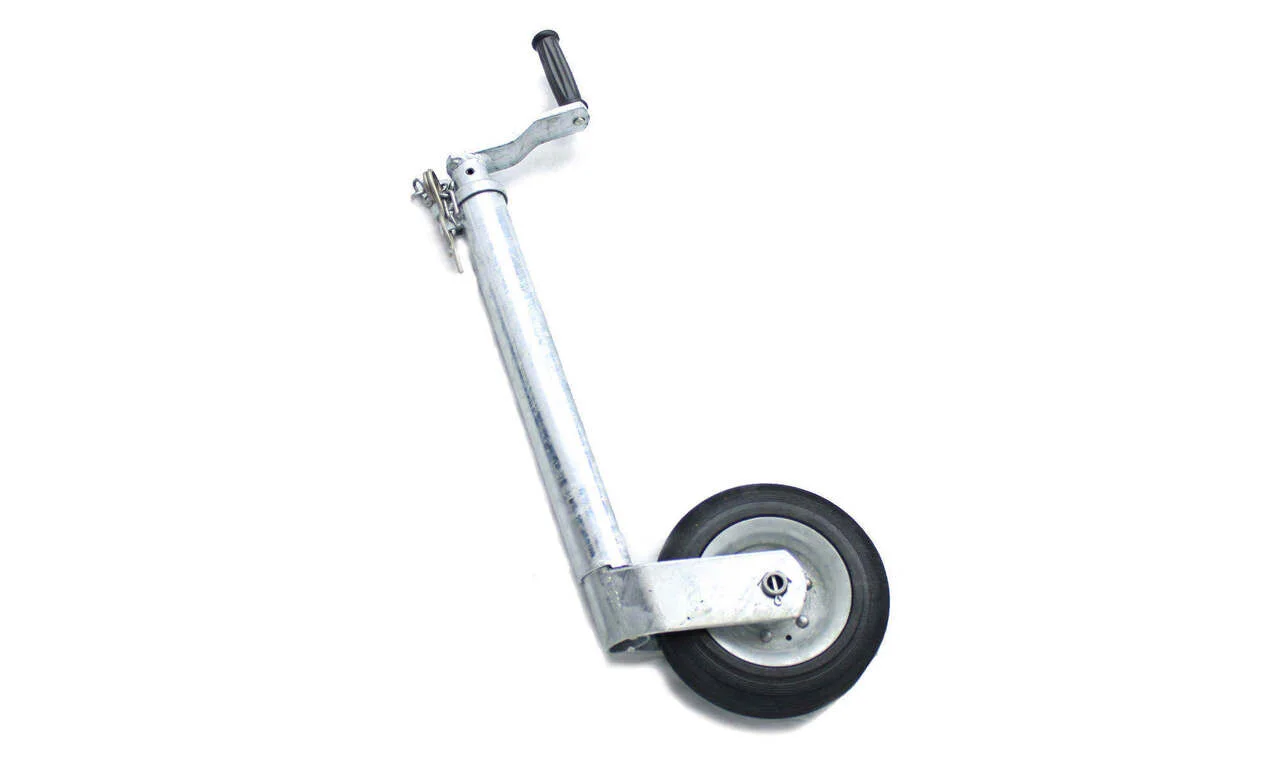

Jockey Wheel - 48mm Smooth
This is a jockey wheel with a 48mm shaft diameter, designed to support the front end of a trailer when unhitched. The steel rim carries a 200x40mm rubber wheel, and the galvanised finish protects against corrosion. It adjusts in height from 592mm to 800mm (excluding handle and any extension) and is rated for a nose weight of up to 125kg.
Why you'll want it
- Galvanised steel construction for weather resistance

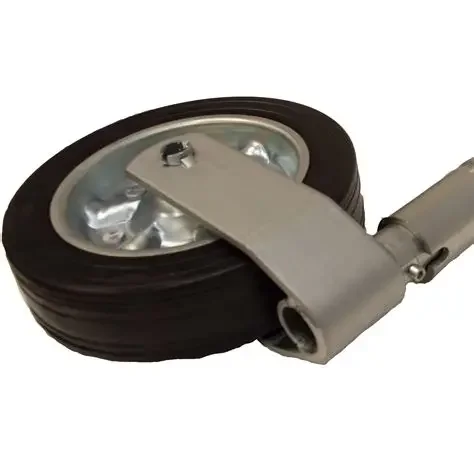

- 200x40mm smooth rubber wheel for easy manoeuvring on hard surfaces
- 48mm shaft diameter fits standard jockey wheel clamps
- Height adjustable from 592mm to 800mm
- 125kg nose weight capacity
Specifications
MaterialSteelColourSilverOuter Tube48mm SmoothLoad Capacity500kgHeight extension270mmHandle extension100mmTyre SIze200x55mmFits
- General Purpose Trailers
- Ifor Williams
What's in the box
- Jockey wheel assembly with smooth rubber wheel
Check your trailer's nose weight and ensure your clamp accepts a 48mm diameter shaft before ordering.
