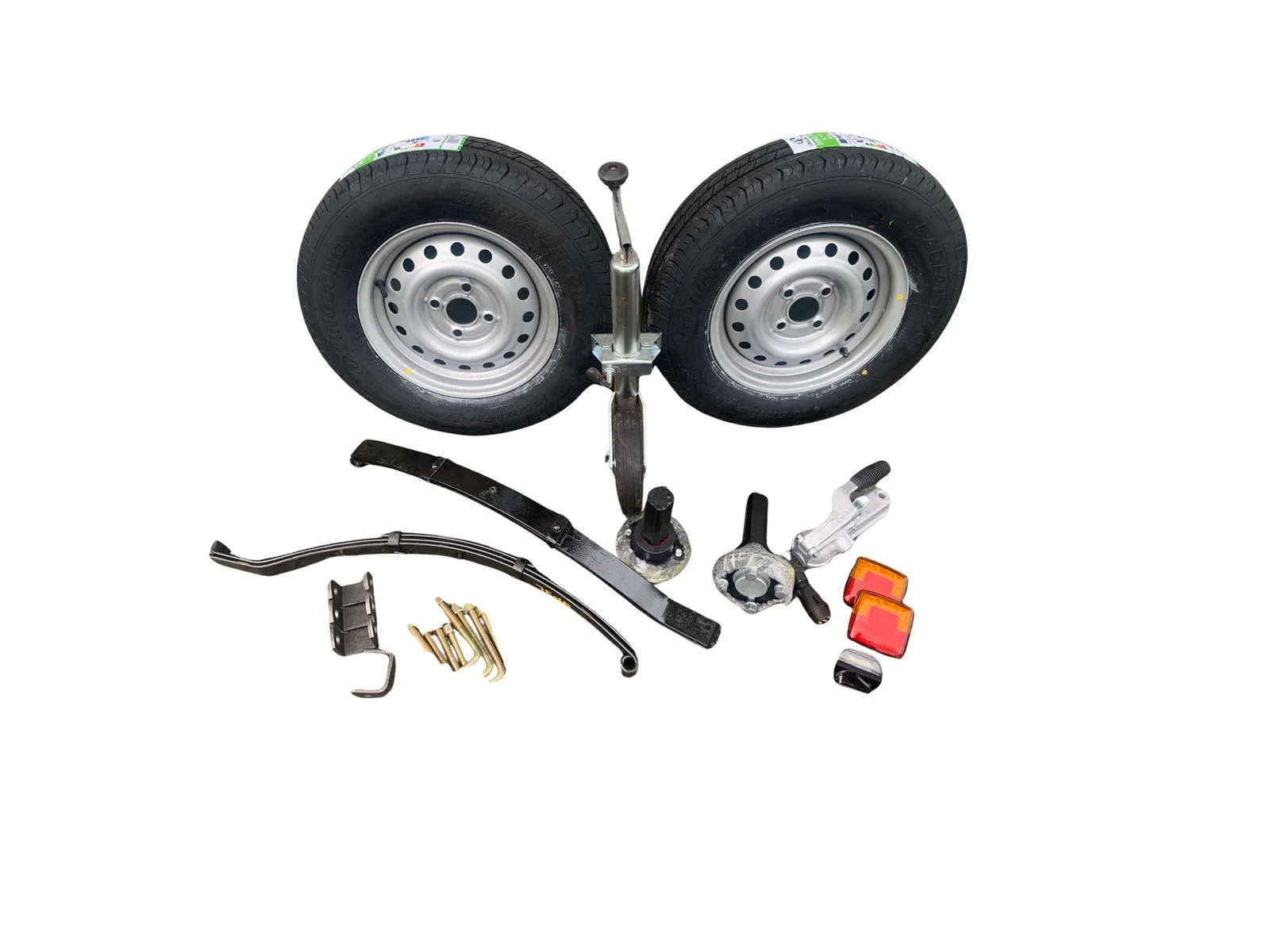

Car Trailer Kit - 13" Wheels

This is a complete car trailer assembly kit containing all the running gear and electrical components needed to build or refurbish a light trailer. It includes a wheel and axle package, suspension parts, lighting system with wiring, and coupling hardware. The kit is built around 13-inch wheels on 100PCD hubs and includes a 1200kg soft grip Bradley hitch for connecting to your vehicle.

Why you'll want it

• Includes complete wheel assemblies with 155R13 tyres on 100PCD hubs
• Three-leaf springs with hangers and U-bolts for suspension
• Full LED rear lighting kit plus number plate light
• 7-pin plug with 5 metres of seven-core cable
• Jockey wheel with clamp and 1200kg Bradley hitch fitted

Specifications

Wheels155R13 wheels with a 100mm Pitch Circle Diameter (100PCD) 2Axles4-stud stub axles (100PCD) 2Springs3-leaf springs for suspension 2Spring hangersSpring hangers 4Mounting plates5-hole mounting plates 2U-Bolts12mm U-bolts. 4HitchBradley hitch (1200kg capacity with a soft grip handle) 1Jockey wheelJockey wheel including a mounting clamp 1Electrial7-pin plug 1LightsLED tail lights which feature stop, tail, and indicator functions 2Number plate lightNumber plate light 1

Fits

• Trailers

What's in the box

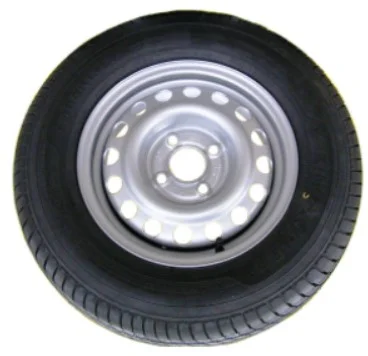

• 2× 155R13 wheels (100PCD)

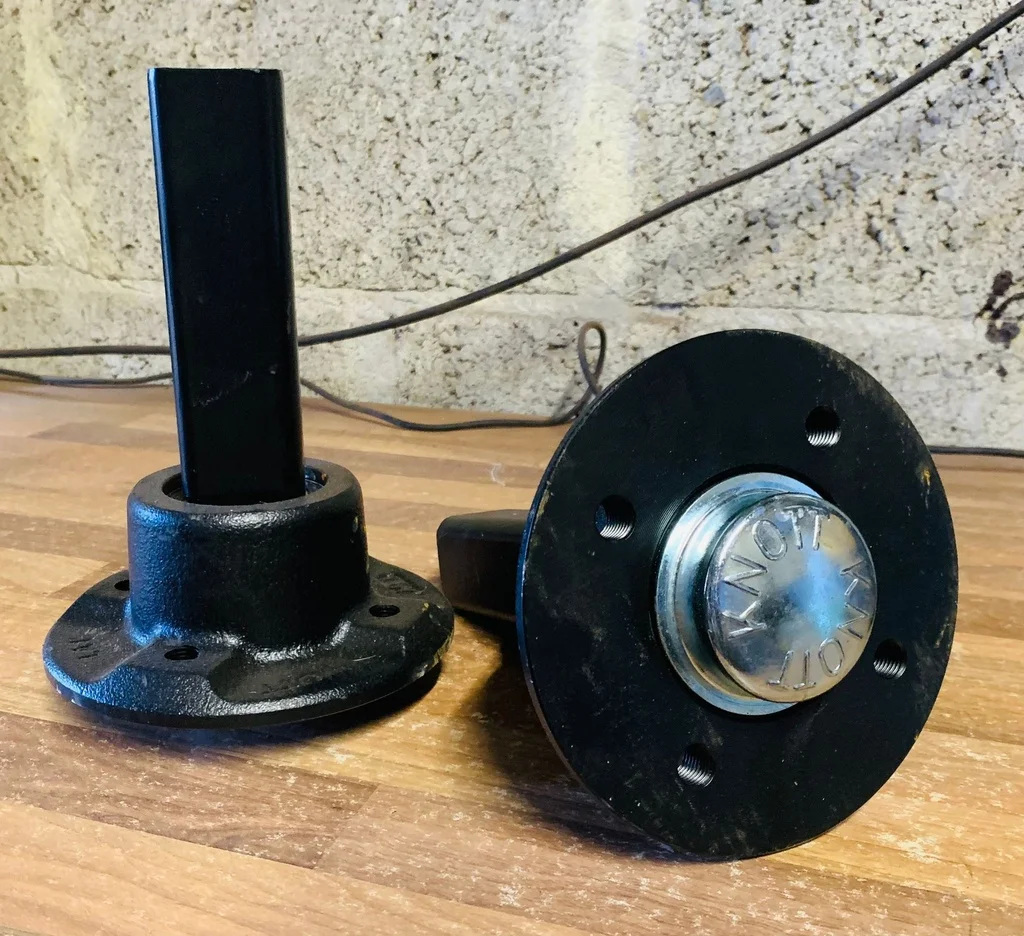

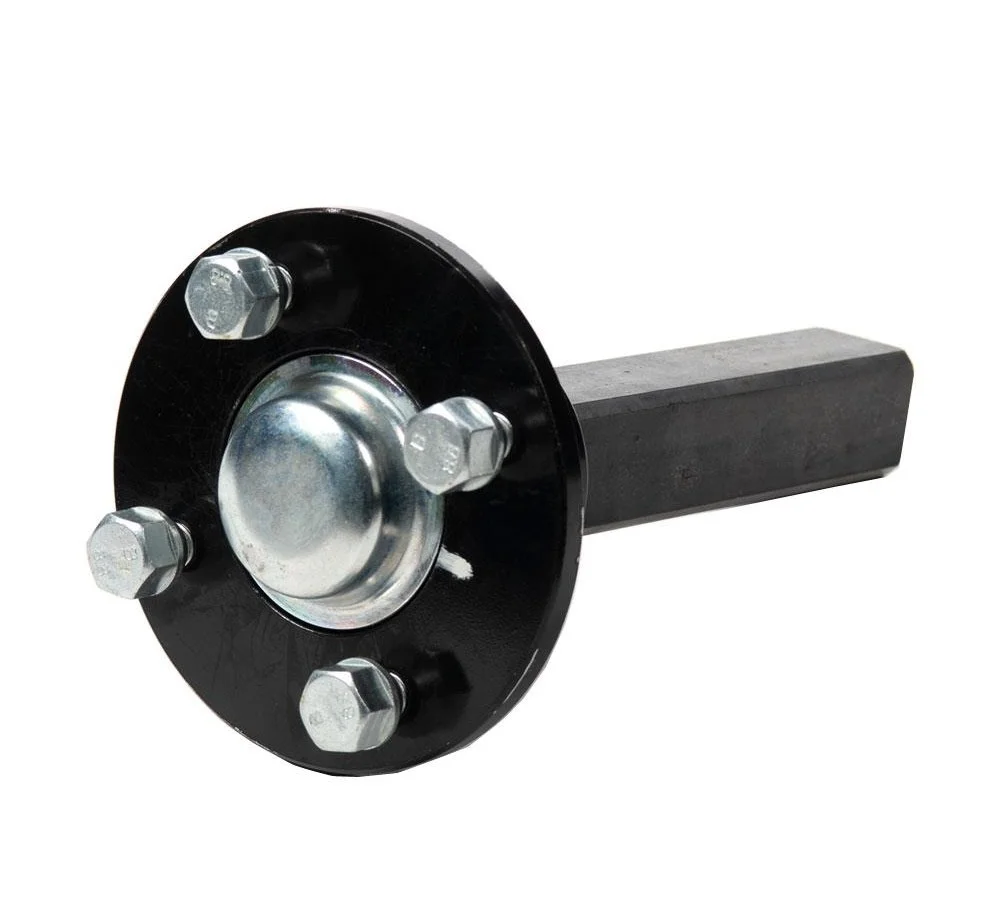

• 2× four-stud stub axles (100PCD)
• 4× spring hangers
• 2× three-leaf springs
• 2× five-hole mounting plates
• 4× 12mm U-bolts
• 1× seven-pin plug with 5m seven-core cable
• 2× LED tail lights (stop/tail/indicator)
• 1× number plate light
• 1× 1200kg soft grip Bradley hitch
• 1× jockey wheel with clamp

This kit suits trailers with 100PCD stub axle mounting. You'll need to match the spring hangers and axle spacing to your chassis design.
