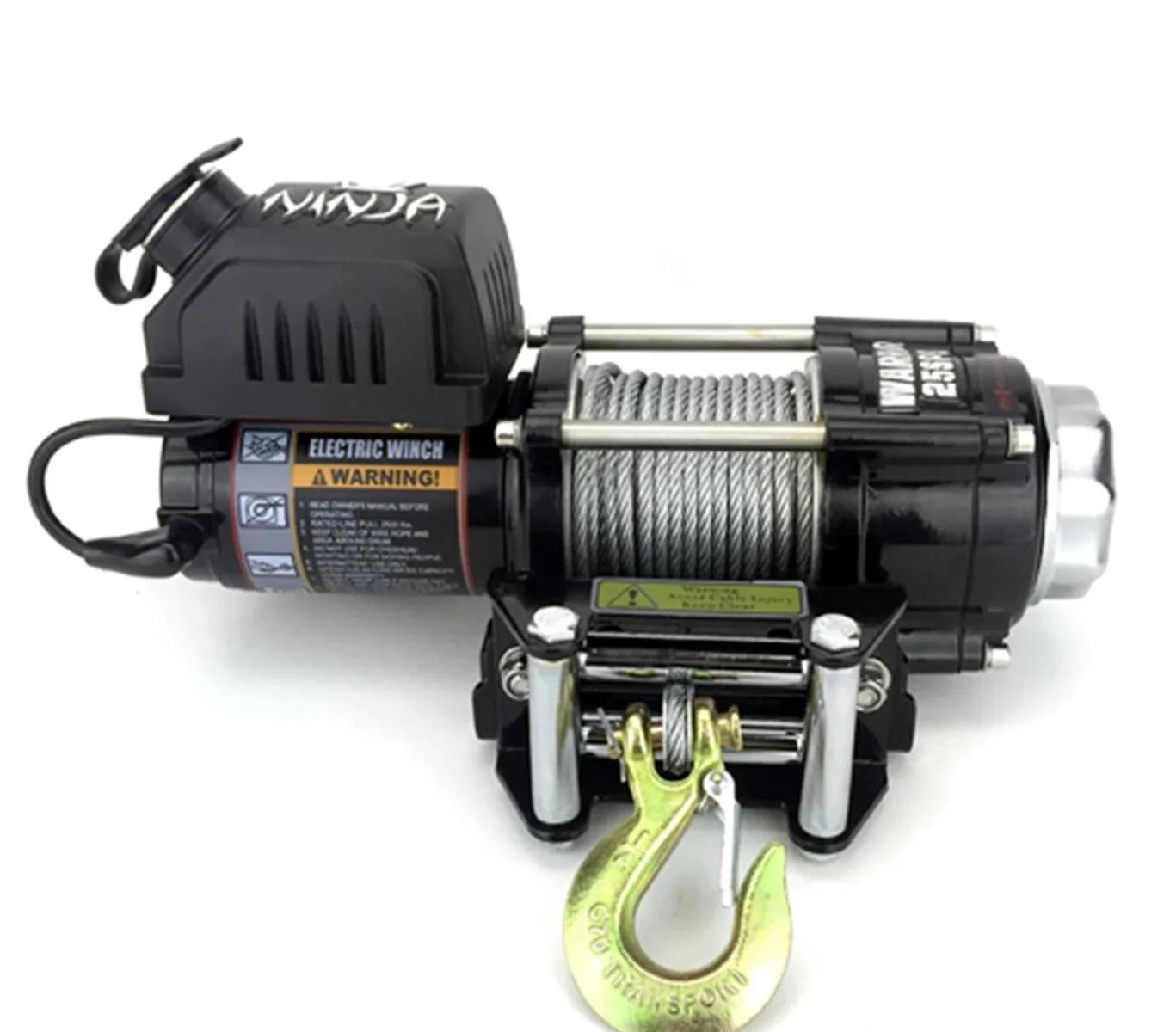

Winch - 2500lb 12V Ninja, Steel Cable

This is a 2500lb (1,134kg) 12V electric winch with 14 metres of 4.8mm steel cable and a clevis hook. It's designed for ATV and utility applications, powered by a 1.95hp motor with heavy-duty steel gearing, a freespooling clutch for manual unwinding, and waterproof contactors. The winch comes with a mount plate for flat bed installations or can be fitted to a portable tow ball attachment.

Why you'll want it

• 2500lb capacity suits ATV recovery and light trailer loading tasks
• 14m steel cable with 4-way roller fairlead guides the line smoothly
• Freespooling clutch lets you pull cable out by hand without powering the motor
• 3m wired hand control included; wireless control available as optional extra
• Mounting plate and bolts supplied for standard installations

Specifications

MaterialPlastic, SteelVoltage12vRated Pull Line2500LBSRope14m of 4.8mm Steel Cable with Clevis HookGear BoxReversible 1.0hp 12v Permanent MagnetMotorMotorFreespooling Clutch - Allows cable to be unwound manuallyDimensions335mm L x 113mm D x 165mm HApprox Weight9kgLine PullNo Load: 3.2 m/min (45 Amps)Line PullFull Load: 1.9 m/min (60 Amps)

Fits

• ATV'S

What's in the box

• Winch unit (335mm L × 113mm D × 165mm H)
• 14m of 4.8mm steel cable with clevis hook
• 4-way roller fairlead

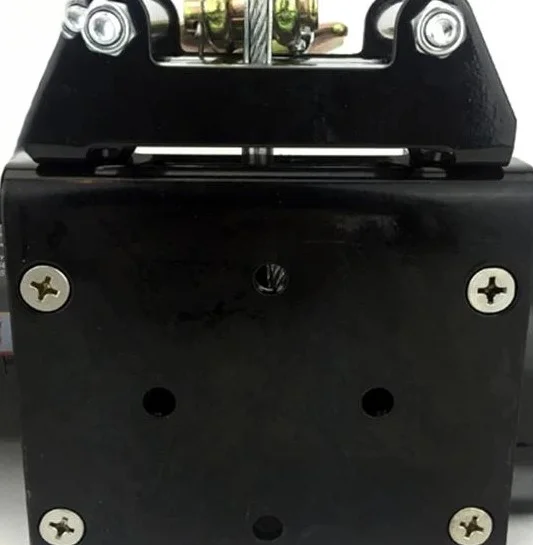

• Mounting plate (bolt pattern 124 × 76mm)
• Mounting bolts
• 3m wired hand control
• Instruction manual

Line pull speed is 3.2 m/min unloaded (45A draw) and 1.9 m/min at full 2500lb load (60A draw), so allow for slower retrieval under heavy pulls.
